Solar Panel 5 5.5 6 12 V Mini Solar System DIY Battery Cell Phone Charger Portable 0.39W 0.6W 0.75W 1.25W 1.5W 1.92W Solar Cell

From $7.99

  • Color:

Categories:

Buy With Confidence

100% Safe Payment

;

  • Description

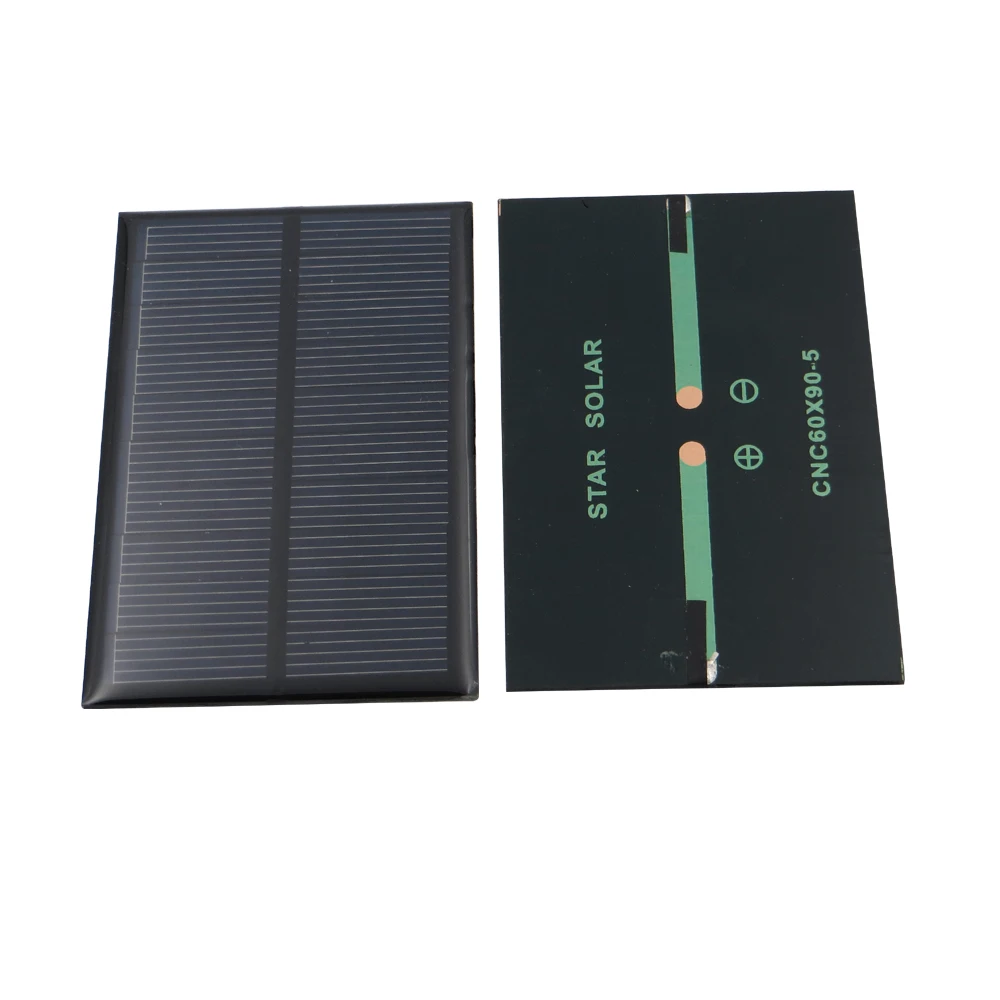

    5V 150mA 0.75Watt

    31

    ​Specification:

    Maximum Power at STC (Pmax):0.75W
    Optimum Operating Voltage (Vmp):5V
    Optimum Operating Current (Imp):150mA
    Open-Circuit Voltage (Voc):6.1V
    Short-Circuit Current (Isc):156mA
    Product Size: 60*90mm

    ———————————————————————————————————————

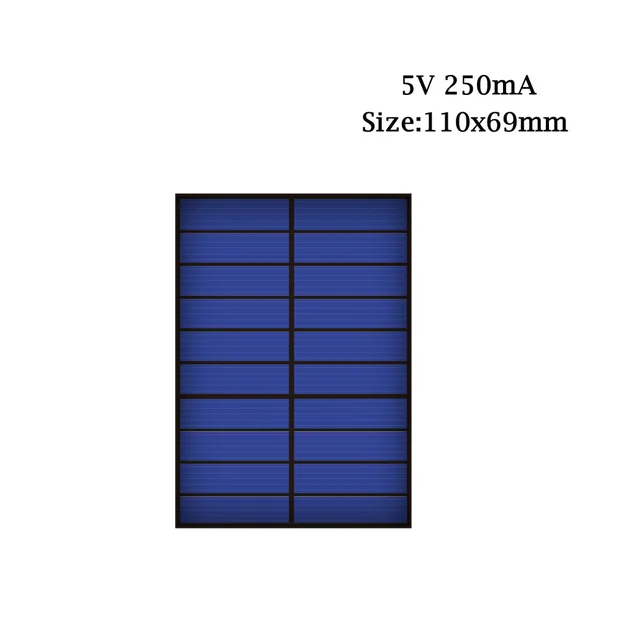

    5V 250mA 1.25Watt
    31
    Specification:
    Maximum Power at STC (Pmax):1.25W
    Optimum Operating Voltage (Vmp):5V
    Optimum Operating Current (Imp):250mA
    Open-Circuit Voltage (Voc):6.1V
    Short-Circuit Current (Isc):268mA
    Product Size: 69*110mm

    ———————————————————————————————————————

    5.5V 70mA 0.39Watt

    14
    13

    Specification:
    Maximum Power at STC (Pmax):0.39W
    Optimum Operating Voltage (Vmp):5.5V
    Optimum Operating Current (Imp):70mA
    Open-Circuit Voltage (Voc):6.7V
    Short-Circuit Current (Isc):84mA
    Product Size: 80*35mm

    ———————————————————————————————————————

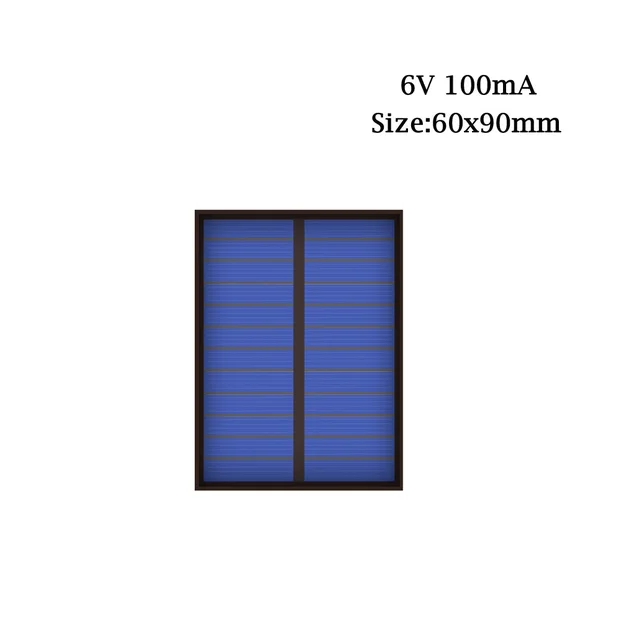

    6V 100mA 0.6Watt



    31

    Specification:
    Maximum Power at STC (Pmax):0.6W
    Optimum Operating Voltage (Vmp):6V
    Optimum Operating Current (Imp):100mA
    Open-Circuit Voltage (Voc):7.3V
    Short-Circuit Current (Isc):112mA
    Product Size: 60*90mm

    ———————————————————————————————————————

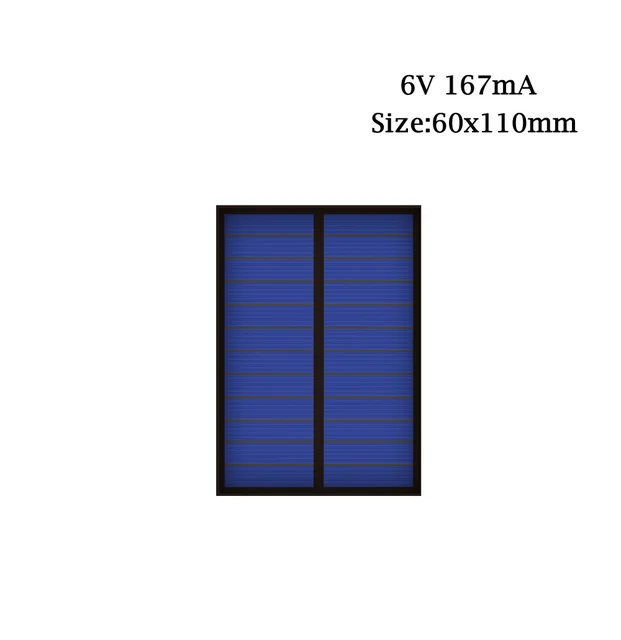

    6V 166mA 1Watt
    32
    Specification:
    Maximum Power at STC (Pmax):1W
    Optimum Operating Voltage (Vmp):6V
    Optimum Operating Current (Imp):166mA
    Open-Circuit Voltage (Voc):7.3V
    Short-Circuit Current (Isc):186mA
    Product Size: 60*110mm

    ———————————————————————————————————————

    12V 125mA 1.5Watt
    7
    4
    Specification:
    Maximum Power at STC (Pmax):1.5W
    Optimum Operating Voltage (Vmp):12V
    Optimum Operating Current (Imp):125mA
    Open-Circuit Voltage (Voc):14.6V
    Short-Circuit Current (Isc):140mA
    Product Size: 85*115mm

    ———————————————————————————————————————

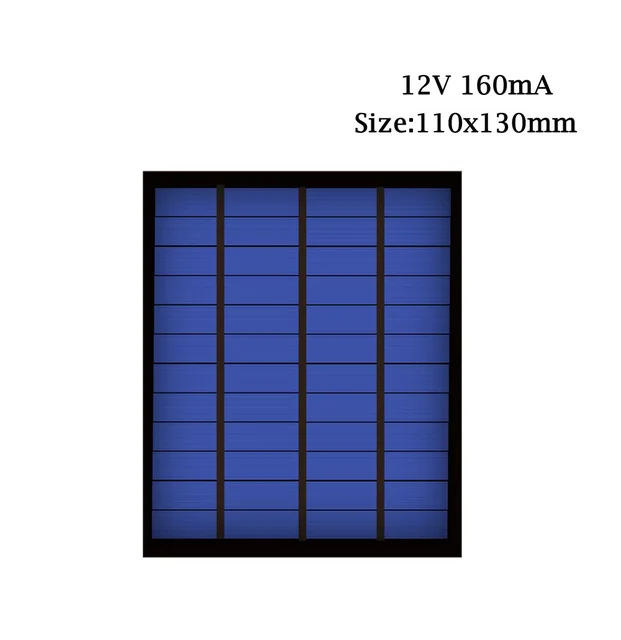

    12V 160mA 1.92Watt
    ​14
    Specification:
    Maximum Power at STC (Pmax):1.92W
    Optimum Operating Voltage (Vmp):12V
    Optimum Operating Current (Imp):160A
    Open-Circuit Voltage (Voc):14.6V
    Short-Circuit Current (Isc):177mA
    Product Size: 110*130mm
